Industrial Warehouse Structural Design.

Rigid Frame & Roof Truss Alternative – AS 4100 / AS 1170
Project Overview
Designed and analysed alternative structural systems for a large industrial warehouse located in South-West Sydney. The project involved evaluating a rigid portal frame and a roof truss alternative, including load assessment, preliminary sizing, and stability verification in accordance with Australian Standards.
Engineering Scope

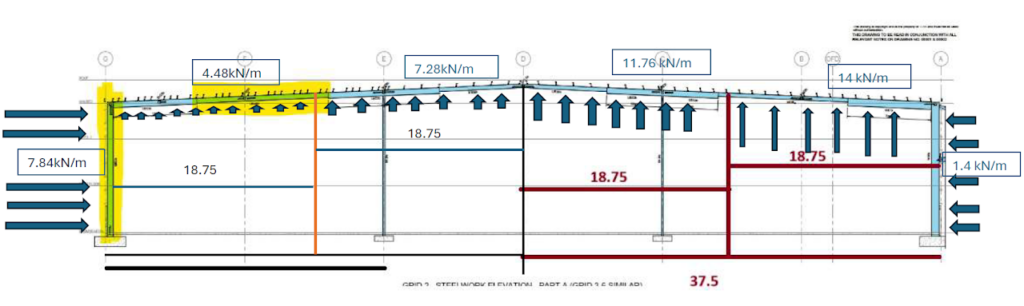

Figure 1. Wind load distribution along portal frame elevation showing varying pressure intensities and tributary spans for lateral analysis.

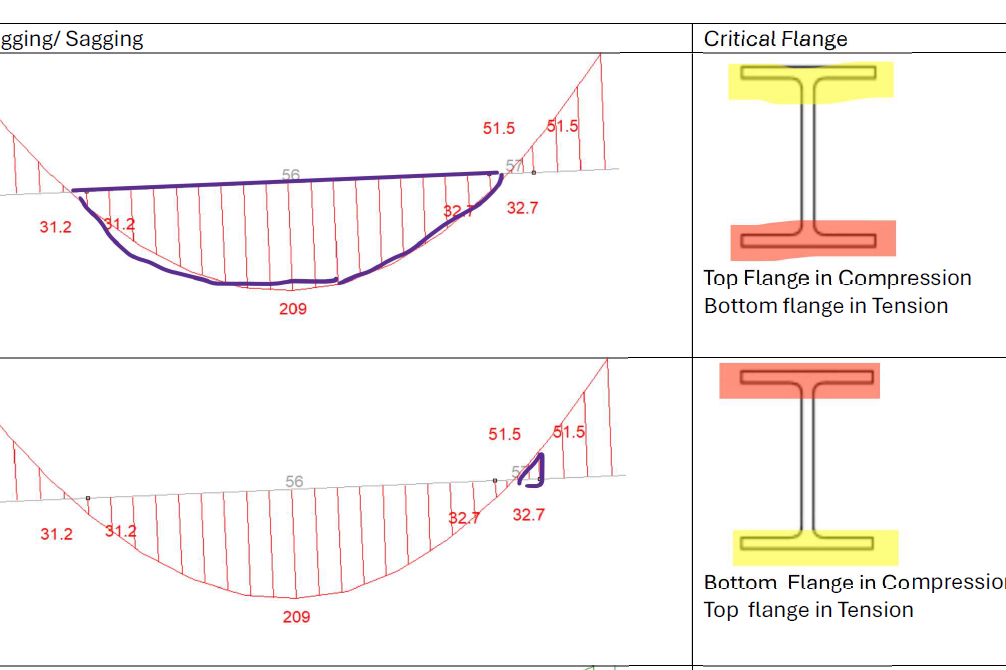

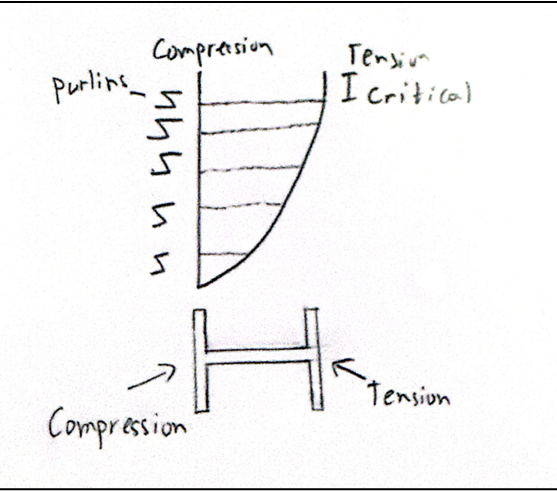

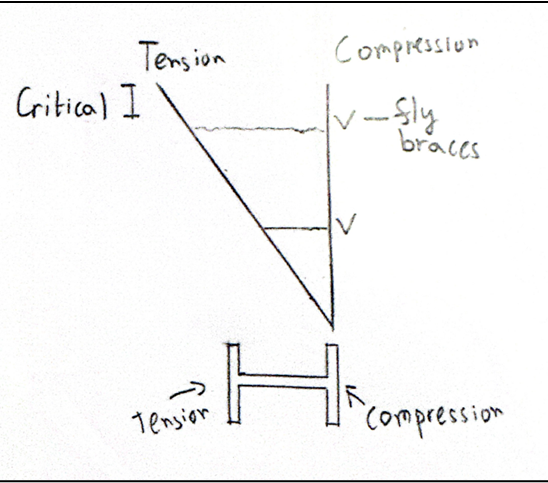

Figure 2. Critical flange identification under sagging and hogging moments, highlighting compression zones and lateral restraint requirements.

Structural System Considered
Tools & Analysis

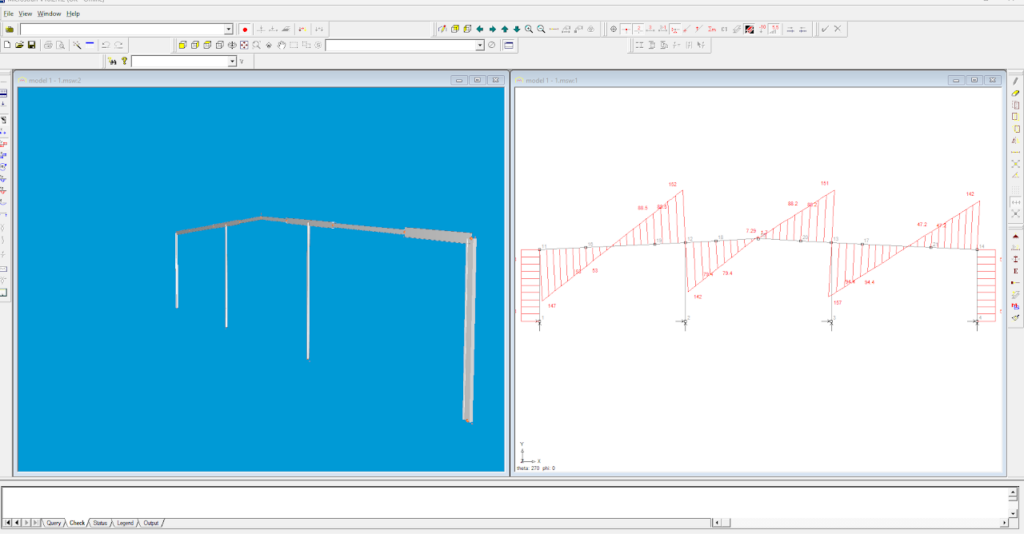

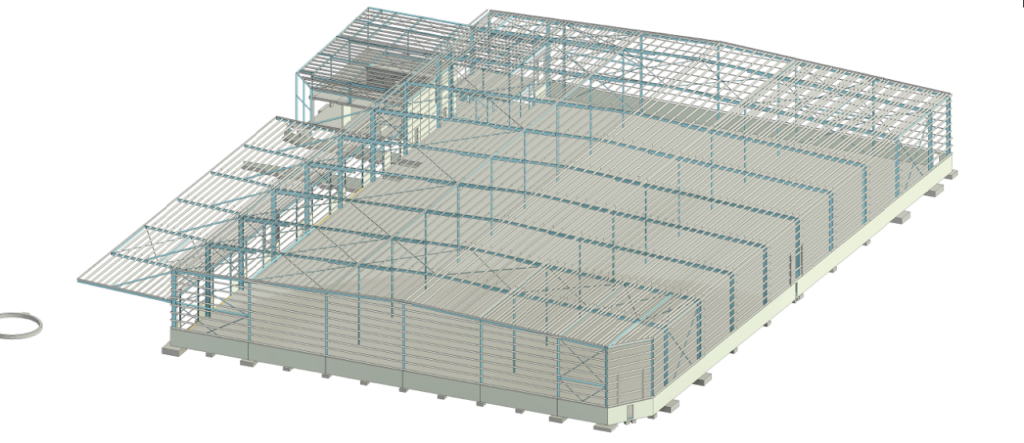

Figure 3. Finite element modelling and bending moment distribution of steel portal frame analysed in Strand7.

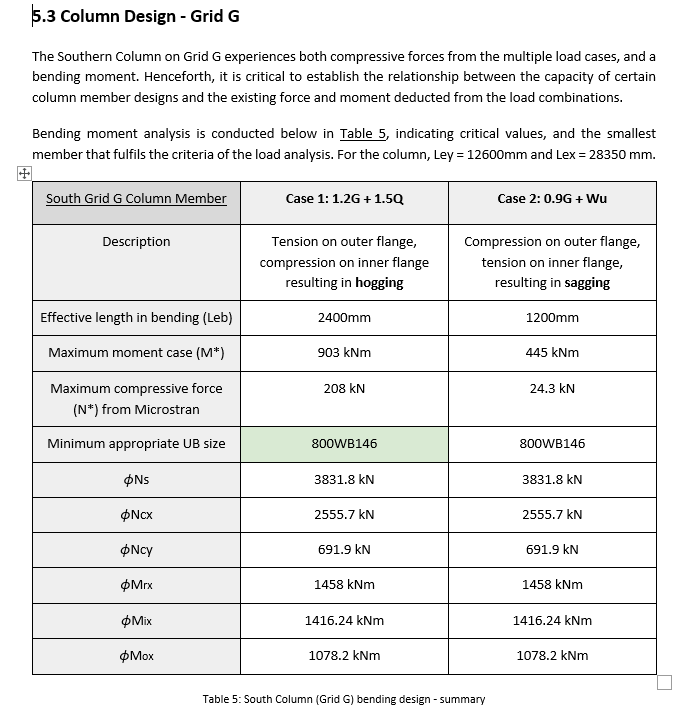

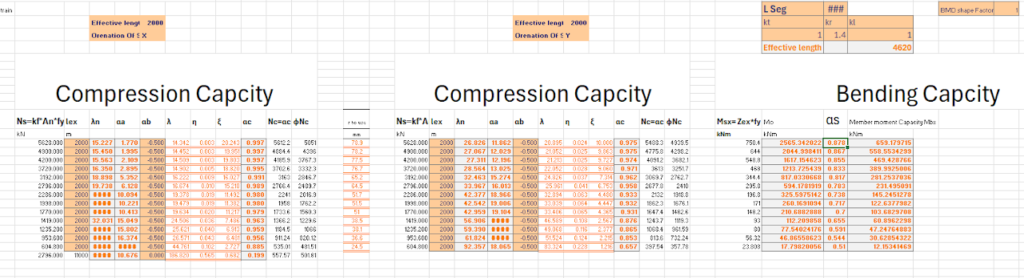

Figure 4. Member capacity verification for axial compression and bending in accordance with AS 4100.
Key Engineering Outcomes

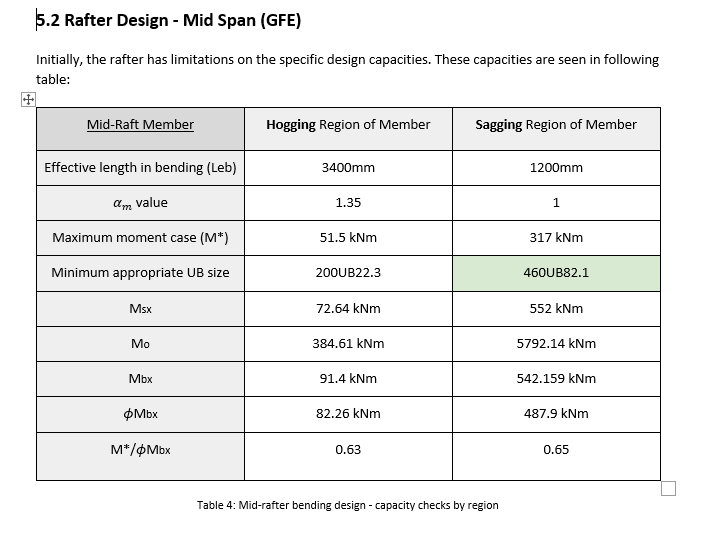

Figure 5. Member selection and capacity checks for critical column and mid-rafter regions based on Microstran analysis results.
